Description

Gigabyte GA-H55-UD3H H55 Socket 1156 8 channel audio ATX Motherboard

-Leading quality standard of Ultra Durable™ 3 classic technology with 2oz copper PCB design. -Innovative Smart 6 technology for smarter PC management. -Supports Intel Core™ i7/ Core™ i5/ Core™ i3 LGA1156 processors. -Dynamic Energy Saver™ 2 technology enables best energy efficiency. -2 PCI-E 2.0 x16 graphics interface(x16+x4) with ATI CrossFireX support for ultimate graphics performance. -AutoGreen technology Greening your PC via Bluetooth cellphone. -Patented DualBIOS™ technology delivering highest level failure protection. -Easy BIOS setting for GPU overclocking. -Supports 6 devices without the need for drivers to be installed before being fully operational. -Enhanced Intel HD Graphics integrated with the processor. -Integrated HDMI/ DVI interface for smoother HD video playback. -High-performance DAC with 108 dB Signal-to-Noise ratio playback quality. -Compatible with Windows 7 to deliver the best operation experience. -Meet European Union EuP(Energy-using Products) requirement.
Specification
Audio
Audio channels	7.1
Audio system	Realtek ALC889

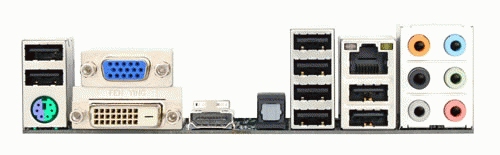

Back panel I/O ports
DVI-D ports quantity	1
Ethernet LAN (RJ-45) ports quantity	1
External SATA ports quantity
HDMI ports quantity	1
IEEE 1394/Firewire ports quantity
Microphone, line-in jack
PS/2 ports quantity	1
S/PDIF in port
S/PDIF out port
Speaker/ headphone/ line-out jack	1
USB 2.0 ports quantity	8
VGA (D-Sub) ports quantity	1
BIOS
ACPI version	1.0b
BIOS type	AWARD
Expansion slots
PCI 32-bit/66 MHz slots	4
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI Express x4 slots	1
Internal I/O
ATX Power connector (24-pin)
CD/AUX audio in
CPU fan connector
Floppy disk drive connector
Front panel audio connector
Number of COM connectors	1
Number of Parallel ATA connectors	1
Number of SATA connectors	6
Power fan connector
S/PDIF out connector
System panel connector
USB 2.0 connectors	4
Memory
Maximum internal memory	16 GB
Memory type	DDR3 2200+/1800/1600/1333/1066/800 MHz
Non-ECC
Number of DIMM slots	4
Networking
LAN controller	RTL8111D
Networking features	10/100/1000 Mbit/s
Processor
Processor family	Intel family
Processor socket	Socket H(1156)
Processors compatible	Core i7 / i5 / i3
Storage controllers
Controller (2nd) interface type	ATA-133/100/66/33
Controller interface type	SATA2
Technical details
Compatible operating systems	Microsoft Windows 7/Vista/XP
Motherboard chipset	Intel H55
Motherboard form factor	ATX
Parallel processing technology support	CrossFire
Weight & dimensions
Depth	210 mm
Width	305 mm
